Choosing the right data logger for your PV system

Solar installations today are far more than static panels feeding energy into the grid. They’re living systems of inverters, meters, weather sensors, and controllers, all generating data every second. At the center of this digital ecosystem sits the data logger: a compact but critical device that collects, processes, and transmits performance metrics to monitoring software or cloud dashboards. Choosing the right logger is not only about accurate readings. It’s about long-term visibility, data ownership, and compliance. As governments tighten localization rules and FEOC-free requirements, knowing where and how your PV data is stored has become a strategic concern.

In this article, we’ll look at the technical and operational parameters that matter when evaluating PV data loggers.

Why PV data loggers matter more than ever

The data logger is often underestimated because it sits quietly between the inverter and the dashboard. Yet it’s the first link in the monitoring chain, and every downstream decision depends on its reliability. Early loggers acted merely as serial-to-Ethernet bridges, forwarding inverter data through RS-485 lines. Today’s PV systems involve hybrid inverters, multiple MPPT strings, smart meters, and grid interfaces, often from different vendors. Modern loggers must aggregate multi-protocol data (Modbus RTU/TCP, MQTT, HTTP, IEC 61850), synchronize timestamps, and buffer readings during outages.

Until recently, most low-cost loggers were tied to proprietary clouds hosted overseas. For industrial, municipal, or defense-linked installations, this raises issues of data sovereignty and vendor dependency. Losing access to a remote cloud platform means losing access to historical performance data – an unacceptable risk for assets expected to operate 20 years or more. Local or hybrid architectures are now gaining ground because they let operators retain ownership of raw telemetry while still using cloud dashboards for analytics. This aligns with the principles of ISO/IEC 30141 (IoT Reference Architecture) and national requirements on energy data handling.

Ultimately, the quality of your monitoring system depends on the quality of your logger. In the next section, we’ll look at the core parameters to compare when selecting one and how each affects long-term reliability.

Core parameters to compare when selecting a PV data logger

Not all data loggers are created equal. Two models might look similar on paper, yet perform very differently once deployed in the field. The right choice depends on how well the device handles data acquisition, storage, connectivity, and environmental stress over the years of operation. Below are the key parameters every installer, EPC, or facility engineer should evaluate before purchase.

1. Connectivity protocols

Connectivity defines how the logger communicates with your inverters and monitoring systems.

• RS-485 / Modbus RTU – the industry standard for most inverter interfaces.
• Ethernet / Modbus TCP – ideal for multi-inverter plants and faster polling.
• Wi-Fi/4G/LTE – enables remote access when wired connections aren’t feasible.
• LoRaWAN or NB-IoT – preferred for distributed arrays or sites with poor coverage.

A versatile logger should support multiple interfaces simultaneously, allowing hybrid setups and future upgrades without hardware replacement.

2. Data acquisition rate and precision

Sampling frequency determines how granular your monitoring will be.

• Low-cost loggers often record every 5–15 minutes, which hides short-term inverter fluctuations or string-level mismatches.
• Industrial-grade models offer 1–10 second intervals, revealing rapid performance drops and enabling precise efficiency calculations.
• A buffer memory of at least 7 days ensures no data loss during connectivity interruptions.
• Inaccurate timestamps or dropped packets can distort yield calculations and invalidate warranty claims, so precision is foundational.

3. Compatibility and open standards

Modern PV sites combine components from multiple vendors. Proprietary logger firmware can limit access to your own data or force you into specific cloud ecosystems. Look for devices that support:

• Open communication protocols: MQTT, HTTP, IEC 61850, JSON, or CSV exports.
• Multi-inverter compatibility: SunSpec Modbus profiles or user-defined register maps.
• API documentation: ensures future integration with custom dashboards, EMS, or asset management systems.

Open architectures not only simplify integration but also future-proof your system against vendor exits or cloud discontinuations.

4. Environmental and electrical protection

PV systems operate under harsh conditions, from rooftop heat to ground-mounted dust and humidity.

• A minimum IP65 rating is recommended for outdoor enclosures.
• Surge protection and galvanic isolation safeguard both the logger and inverters.
• Extended temperature range (–25 °C to +70 °C) ensures year-round reliability.

These specifications often define whether the logger will last 2 years or 10.

5. Power backup and data resilience

A logger without backup loses data whenever power or the network fails. Critical features include:

• Internal supercapacitor or Li-ion battery for several hours of autonomous logging.
• Automatic data resend once connectivity is restored.
• Watchdog and self-reboot functions to recover from firmware hangs.

Even a short outage can cause monitoring gaps, so verify that data buffering and automatic synchronization are explicitly supported.

6. Security and firmware management

With PV systems now connected to corporate and utility networks, cybersecurity is essential.

• Ensure TLS encryption, device authentication, and firmware updates are protected by encryption.
• Avoid models with hardcoded credentials or non-upgradable firmware.
• Choose vendors providing digitally signed OTA updates and user-role management.

Security is a compliance requirement under ISO 27001 and U.S. NERC CIP guidelines.

Comparison snapshot: key parameters across typical logger classes

This table illustrates how functionality scales with design maturity. For critical or large-scale installations, the investment in an industrial or edge-grade logger quickly pays off through reduced downtime and traceable performance records.

NB! When selecting a data logger, rely on verifiable technical documentation, such as IEC 61724-1:2021 (Photovoltaic System Performance Monitoring Guidelines), and independent testing reports rather than marketing claims. Proper specification review ensures not only data integrity but also compliance with incentive programs that require validated performance data.

Local vs cloud-based logging – where your data lives

Having examined the internal parameters of a data logger, it’s equally important to understand where your data is stored: in the cloud, locally, or both. Let's compare these architectures and their implications for reliability and compliance.

Cloud-based loggers

In cloud-first architectures, all telemetry from inverters and meters is transmitted to the vendor’s remote server. This model offers simplicity: no local configuration, instant dashboards, and automatic updates. It works well for small residential systems. However, it comes with notable trade-offs:

• Dependency on remote servers, because if the vendor discontinues service or changes pricing, access to historical data can vanish overnight.
• Latency and connectivity gaps – cloud reliance introduces potential delays in alarm delivery and data synchronization.
• Jurisdictional exposure, meaning that data often crosses borders, which can breach national energy data regulations or internal IT policies.

For critical infrastructure, municipalities, or commercial systems with uptime guarantees, these risks outweigh the convenience of a purely remote platform.

Local data logging

Local or “edge” architectures store and process data directly on-site, either in the logger’s memory or on a connected gateway. Advantages include:

• All records remain within the facility's physical boundaries.
• Real-time control and fault alerts are not dependent on an internet connection.
• Aligns with U.S. DOE cybersecurity guidelines, FEOC-free procurement rules, and EU Data Act localization principles.
• Even if the internet or cloud platform fails, the system continues logging and can sync later.

Modern edge loggers often provide hybrid operation, storing data locally while securely mirroring it to a preferred cloud or SCADA platform via MQTT or HTTPS.

Hybrid architectures – best of both worlds

The most resilient setups combine the two models. Data is collected and processed locally for operational control, while summarized or historical data is backed up to the cloud for visualization and long-term analytics. This approach balances redundancy and accessibility:

• No monitoring gaps during outages.
• Easy performance tracking across multiple sites.
• Operators can connect to their own dashboards or third-party energy management systems using open APIs.

Such a hybrid design supports ISO/IEC 30141 IoT Reference Architecture principles by keeping the control plane local and the data plane interoperable.

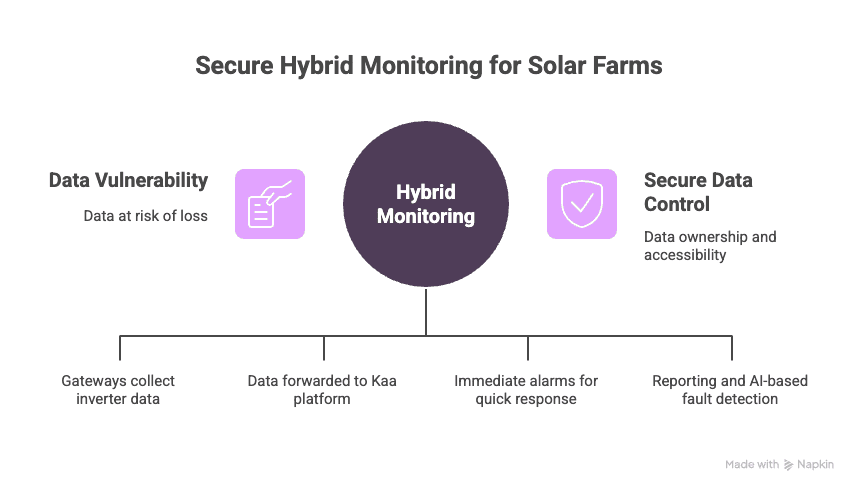

Case example – secure hybrid monitoring

Consider a scenario in which Milesight UG65 LoRaWAN gateways collect inverter and weather-station data from a distributed solar farm. The gateways forward encrypted MQTT streams to the Kaa IoT Platform hosted locally or in a trusted regional cloud. This setup ensures:

• Continuous data capture during network disruptions.
• Local analytics for immediate alarms.
• Controlled cloud sync for reporting and AI-based fault detection.

All data ownership and encryption keys remain under the operator’s control, ensuring both compliance and long-term accessibility.

Cloud monitoring may be sufficient for residential rooftops, but industrial and utility-scale PV operators need local or hybrid architectures to maintain control, transparency, and auditability. The question is no longer where dashboards look best, but where your data safely lives when the internet doesn’t.

Interoperability and integration with PV monitoring platforms

A logger’s compatibility determines how efficiently your PV data moves from the field to the cloud and, ultimately, how actionable it becomes. Without open standards, installers face time-consuming custom integrations, unstable firmware patches, or even total dependence on proprietary platforms. In contrast, a standards-based logger allows you to add, replace, or upgrade equipment with minimal friction. For long-lifecycle assets like solar plants (20+ years), interoperability is what keeps your monitoring future-proof and vendor-independent.

A robust PV data ecosystem typically involves three levels of communication:

1. Device Layer – inverters, combiner boxes, energy meters, irradiance sensors, and trackers.

• Uses field protocols such as Modbus RTU/TCP, RS-485, or CAN bus.
• Loggers must support multiple device addresses and vendor-specific register maps.

2. Gateway Layer – local data aggregation and protocol translation.

• Converts field data into MQTT, HTTPS, or JSON payloads for upper layers.
• Provides buffering, timestamping, and encryption.

3. Platform Layer – cloud or on-prem systems that store, visualize, and analyze the data.

• Common APIs include REST, GraphQL, or WebSockets.
• Integration success depends on consistent schema mapping and secure authentication.

A well-architected logger bridges all three layers without losing context or data fidelity.

Practical checklist

A reliable PV data logger combines connectivity, accuracy, security, and openness into a single device. It bridges field data and decision-making, providing the foundation for predictive maintenance, energy reporting, and asset optimization.

The checklist below summarizes what to prioritize before purchasing:

Closing insight

In an era when solar energy infrastructure is increasingly digital, the data logger has evolved from a simple connector into a strategic control point. It defines how your PV system communicates, complies, and scales. By focusing on verifiable technical parameters and open architecture, system owners can ensure that their energy data remains both accessible and sovereign for decades to come.

Kaa IoT enables OEMs, EPCs, and integrators to deploy flexible monitoring systems that combine local resilience with cloud analytics, giving complete transparency over data, devices, and performance. Check how our platform can support your next PV project.
